UH-60L Blackhawk Aviator's WingNotes
Quick Reference Handbook and Performance Supplement
ISBN 1-878595-07-5, Ringbound only, $100.00 USD

Available only under official U. S. Government procurement contract...

This Handbook Features...
  • Comprehensive Simplified PPC Data revolutionizes performance planning speed and accuracy.  Complete your performance planning in a snap!

  • Logical Flow Diagram Procedures. Refresh your memory, work your planning and performance considerations step-by-step through a concise decision tree.

  • Integrated with other Pubs. The latest TM 1-1520-237-10 data are integrated with guidance from other publications i.e. AR 95-1, TC 1-212 and CFR's etc.

  • Tabbed Indices organize procedures and data the way you actually fly; TAKEOFF, CRUISE and LAND.  Also provided are LIMITS/SPECIFICATIONS, IRREGULAR, EMERGENCY and ADDITIONAL Procedures and a PROCEDURAL INDEX.

  • Conveniently Sized to the "-CL". More than 300 heavy durable pages measure 4.5 x 8 inches.  Seven pre-punched equally spaced holes allow the handbook to be "ringed" just like the "-CL".

  • Three Handbooks in One.  Performance data covering CLEAN, HI-DRAG (ESSS) and VOLCANO configurations are "color coded".  Each page clearly indicates aircraft designation, power plant and data basis.

NO MORE PPC BLUES

Completing the Performance Planning Card (PPC) can be time consuming and tedious, but not any more.  The UH-60A/EH-60A Blackhawk Aviator's WingNotes™, Quick Reference Handbook developed by an Army Aviator for professional aviators rated on the UH-60A/EH-60A.

No more "chase-around" charts!...  No more interpolating graphs!...

Compare TM 55-1520-237-10 and Blackhawk Aviator's WingNotes side-by-side…

TM 55-1520-237-10

UH-60L Blackhawk Aviator's WingNotes

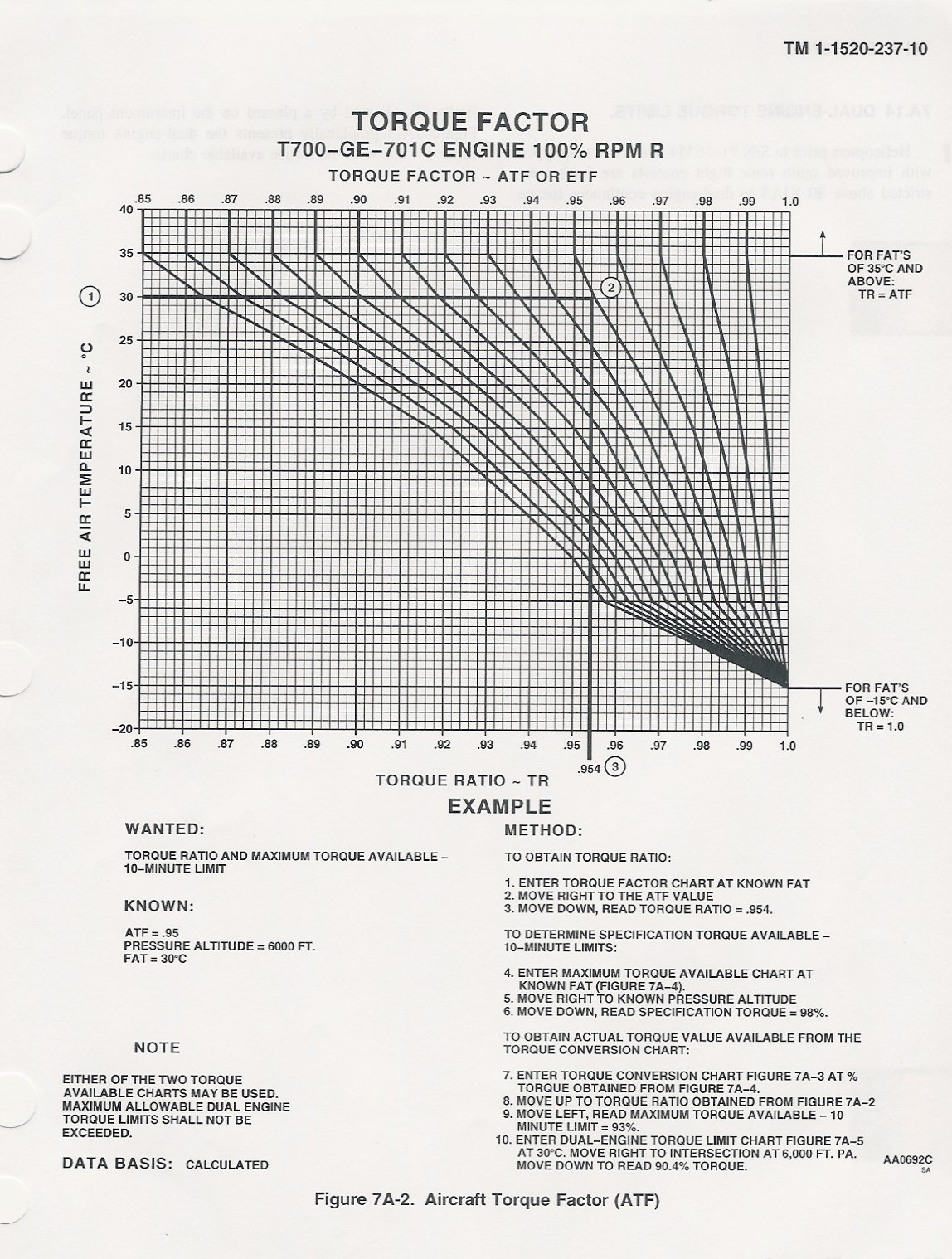

Figure 7A-2, Torque Factor (ATF or ETF),
pg 7A-7

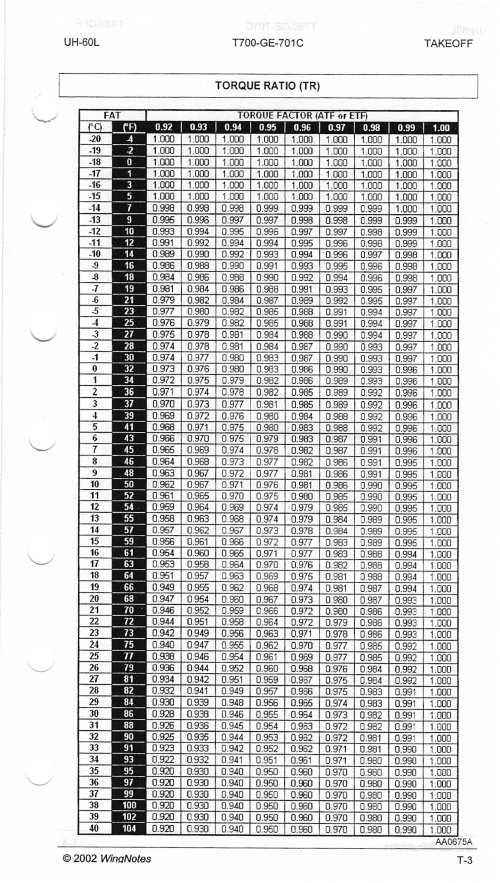

TAKEOFF, Torque Ratio (TR),
(pg T-3)

TR values to third decimal place precision.

FAT's in increments of one degree celcius.

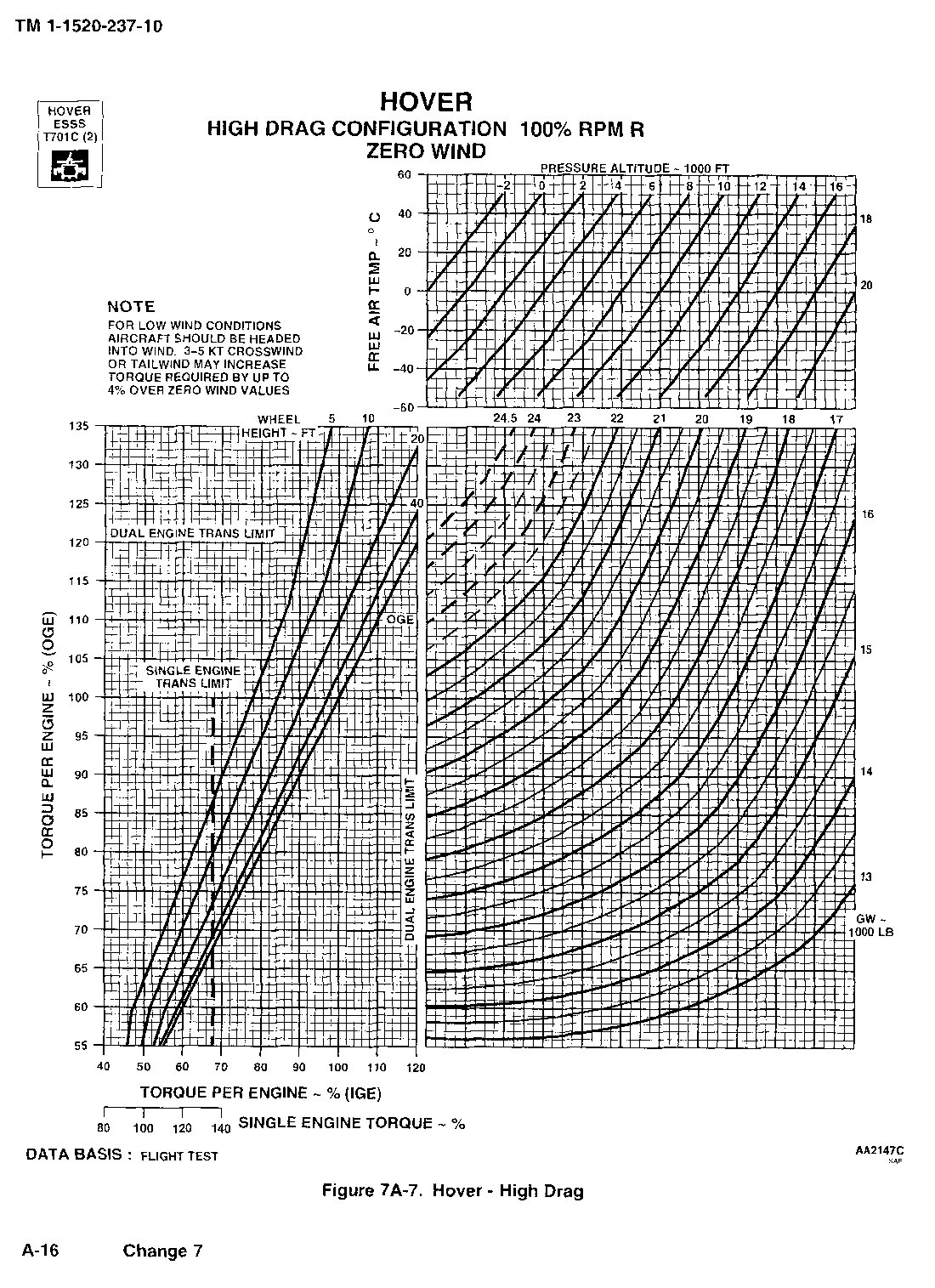

Figure 7A-7, Hover HI-DRAG,
pg 7A-16

Can you hold a loose leaf binder in your lap at the controls?...

Tired of fiddling with straight edges?...

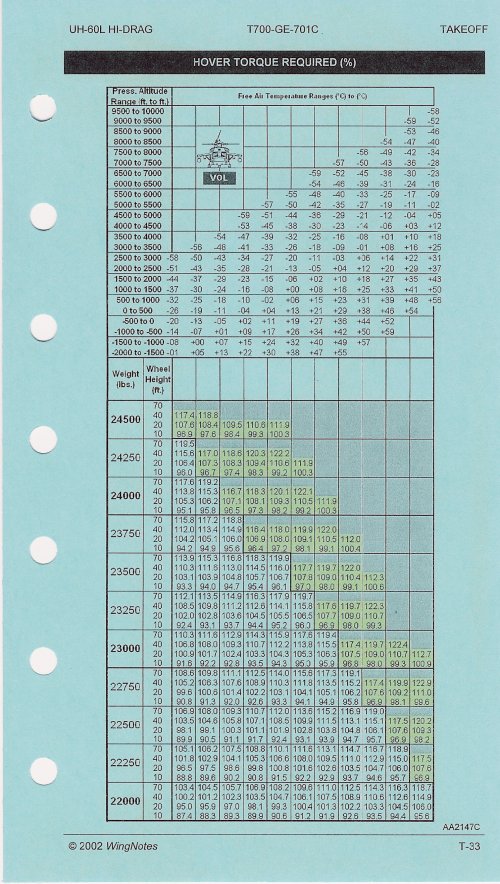

TAKEOFF, Hover Power (%),
(pg T-33)

More accurate results.

First time.

Everytime.


Logical Flow Diagram Procedures precede each set of data

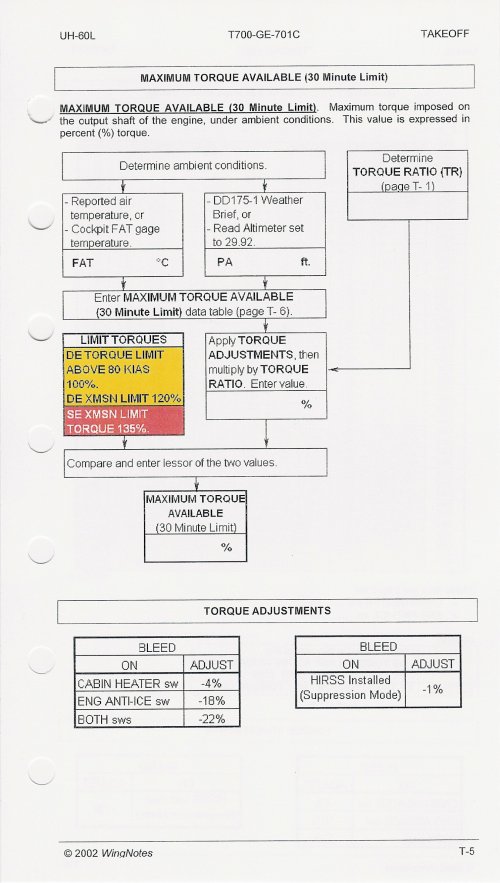

TAKEOFF, MAXIMUM TORQUE AVAILABLE (30 minute Limit) procedure
(pg T-5)

Condition/Action Flow Diagrams (C/AFD) like this always precede data tables.

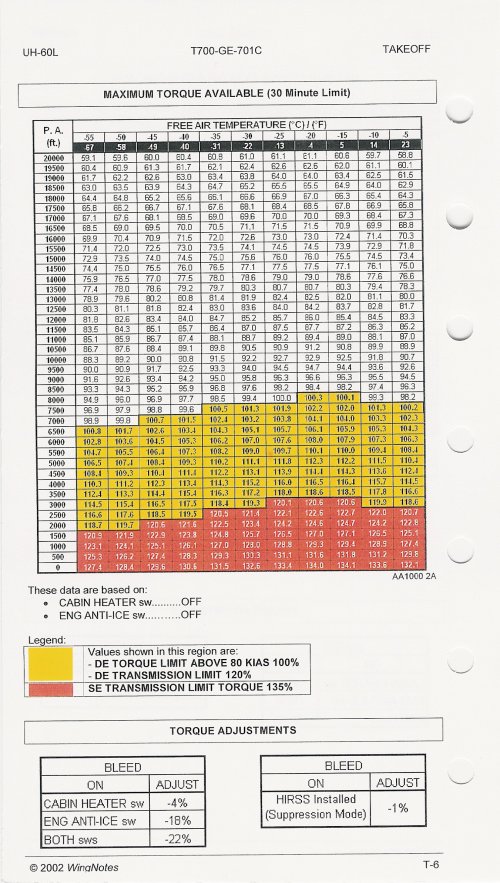

TAKEOFF, MAXIMUM TORQUE AVAILABLE (30 minute Limit) data tables
(pg T-6)

Data includes:

  • Data basis
  • Torque Adjustments (%)
  • FAT's (°C & °F)
  • DE/SE TORQUE LIMITS in Color!...

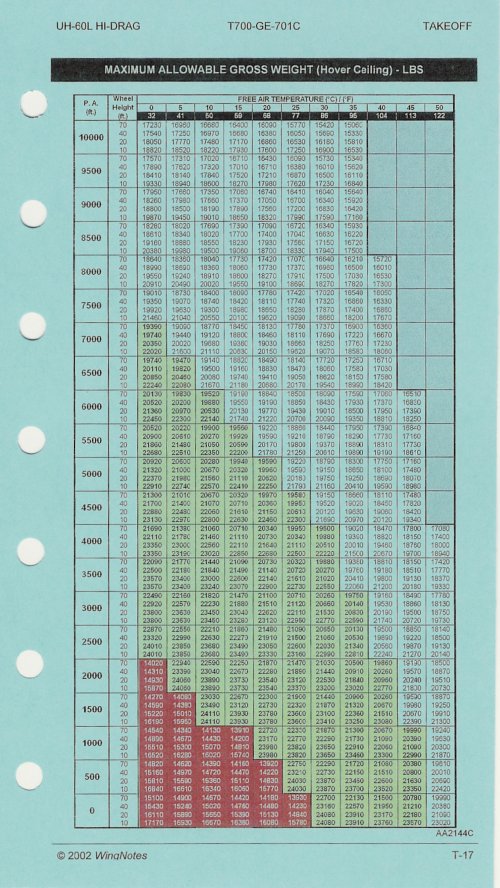

TAKEOFF, MAXIMUM ALLOWABLE GROSS WEIGHT (Hover Ceiling) data tables
(pg T-17)

Data blocks includes:

  • Data basis
  • Wheel Heights 10', 20' 40' & 70'
  • FAT's (°C & °F)
  • DE/SE TORQUE LIMITED Weights in Color!...

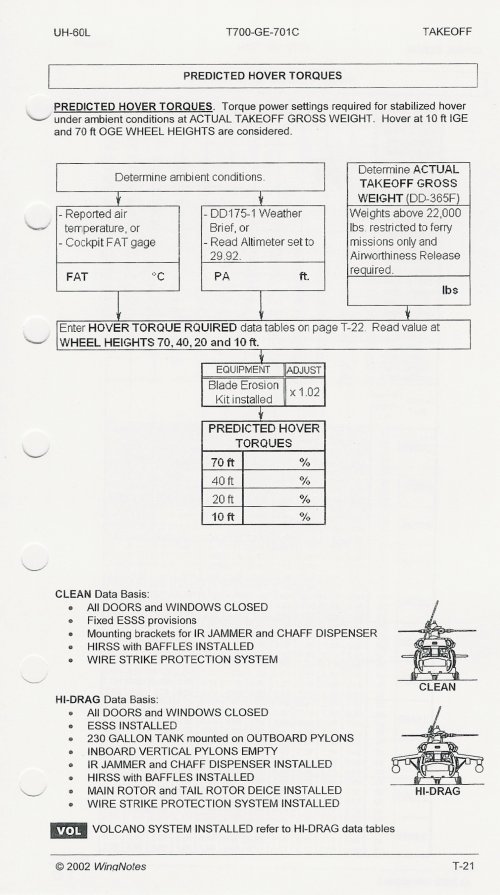

TAKEOFF, PREDICTED HOVER TORQUES Procedure
(pg T-21)

Condition/Action Flow Diagrams (C/AFD) like this always precede data tables.







Online Store

Printable Brochure
Download details:


Works with
Adobe Acrobat Reader

Filename:
WI_UH60Lqrh.Pdf

To Order, click here.
